Vehicle Elevator

The Automated Parking Company’s

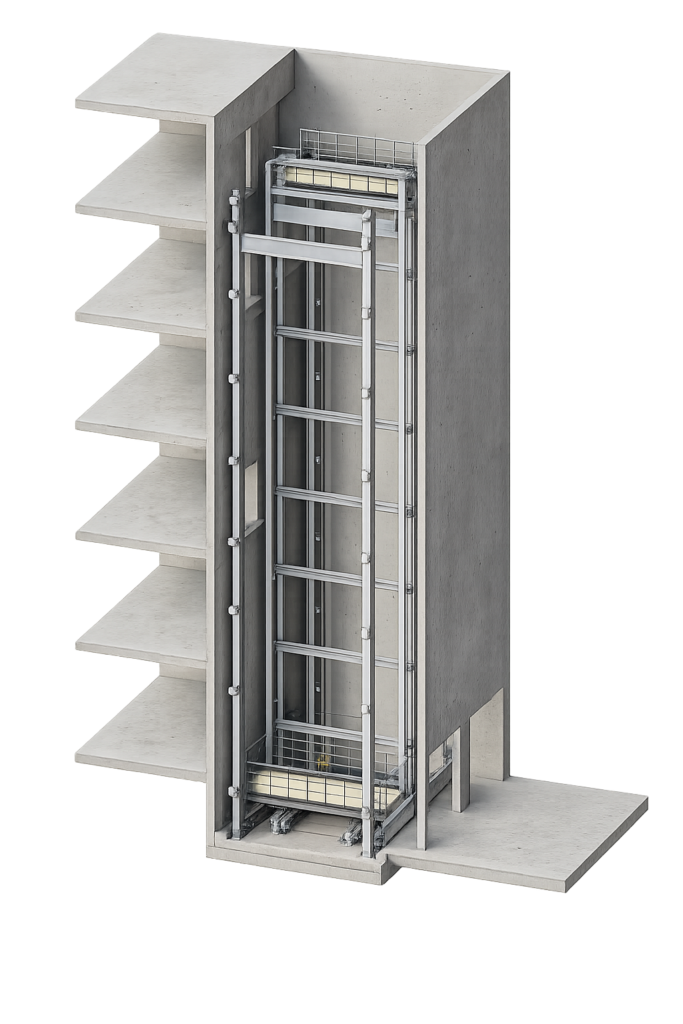

Vertical Reciprocating Conveyor (VRC) is designed to transport vehicles efficiently between multiple levels. The system provides smooth vertical lifting and lowering and can be configured with integrated rotation capabilities to accurately position vehicles during transfer.

An integrated PLC control system manages movement, speed, and stopping positions, enabling precise, automated operation while supporting efficient maintenance and overall system performance.

TAPCO offers a comprehensive range of Vertical Reciprocating Conveyor (VRC) configurations to accommodate diverse site conditions and project requirements, including underground installations and ground-up applications. Depending on applicable codes and Authority Having Jurisdiction (AHJ) requirements, the elevator drive and machine room may be located either at the top of the VRC structure or within the pit. This flexibility allows the system to adapt to site constraints while maintaining compliance, safety, and optimal performance.

Vehicle Retrieval Sequence

1. The platform is summoned to the VRC kiosk station via the user interface.
2. Once the system verifies readiness, the safety gate opens to allow vehicle access.
3. The vehicle is driven onto the VRC platform and properly positioned.
4. The user exits the VRC shaft and confirms via the kiosk interface that the vehicle is correctly positioned.
5. The safety gate closes and the system verifies all safety interlocks.
6. The PLC control system initiates the programmed travel path, speed, and stopping positions.
7. The drive mechanism engages, moving the platform vertically along the mast to the selected level.
8. The vehicle is delivered to the designated location and accurately positioned for transfer, storage, or retrieval.

Note: Personnel and pets are strictly prohibited from occupying the vehicle or platform while the VRC is in motion.
