The Fastest Way Multifamily Developers Reclaim 60% More Buildable Space with AGV-based robotic parking valet garages, Car Stacker Valet Parking Systems and Vertical Lift Puzzle Parking Systems

05 Feb 2026

Every square foot counts in multifamily development. In major metropolitan markets where land costs can exceed $500 per square foot, dedicating 30-40% of your building footprint to traditional parking isn’t just inefficient, it’s a direct hit to your bottom line. Conventional parking garages demand driving lanes, ramps, turning radii, and floor-to-ceiling heights that consume buildable space that could otherwise generate rental income.

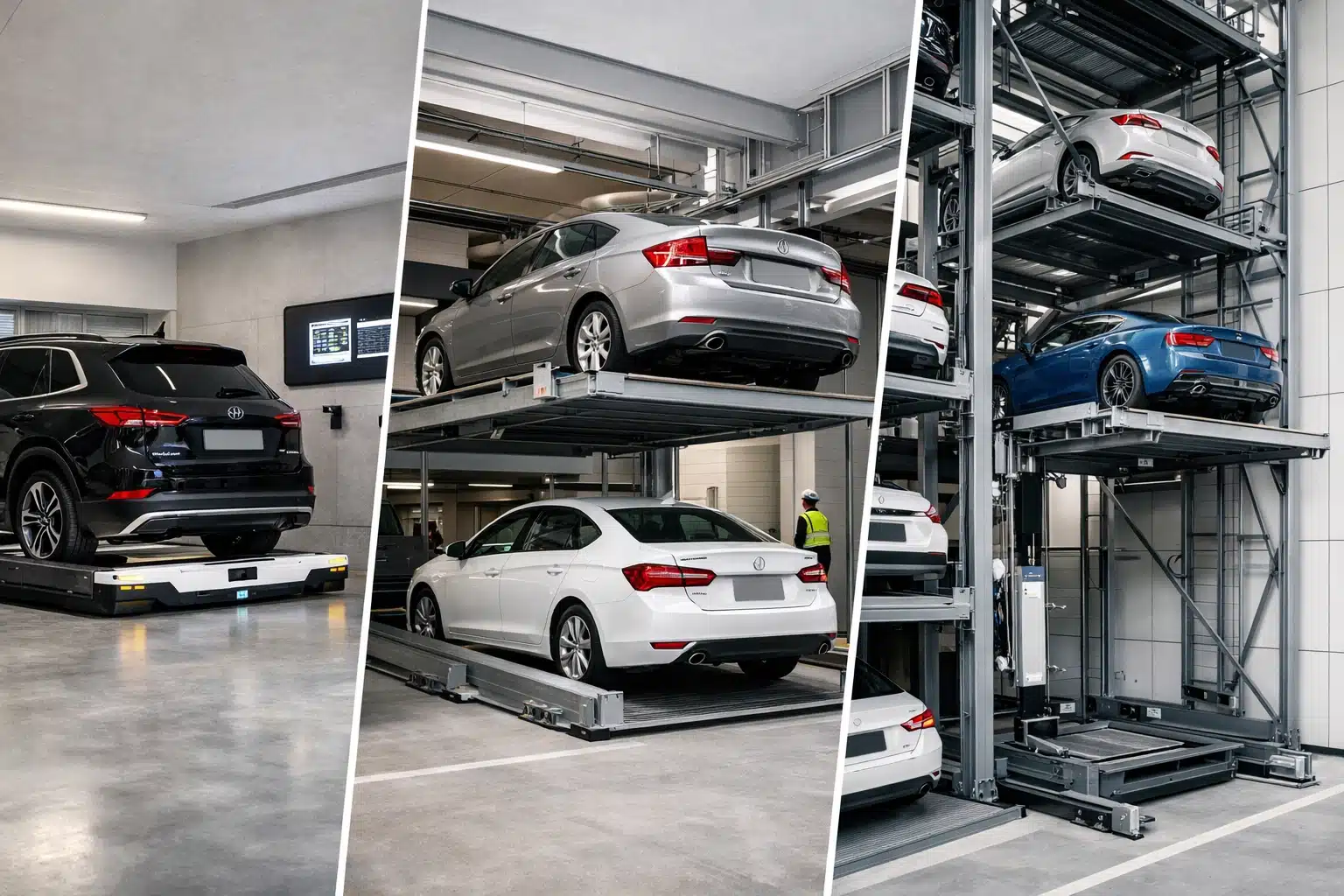

The game has changed. Automated parking technologies are allowing forward-thinking developers to reclaim up to 60% more buildable space by eliminating the spatial waste inherent in conventional parking design. Three distinct systems, AGV-based robotic parking valet garages, car stacker valet parking systems, and vertical lift puzzle parking systems, are transforming how multifamily projects optimize their most valuable asset: space.

Why Traditional Parking Wastes Your Buildable Area

Before diving into the solutions, it’s essential to understand where conventional parking fails multifamily developers. A traditional parking garage requires:

• Driving aisles typically 20-24 feet wide to accommodate two-way traffic
• Ramps consuming 10-12% of total garage area with minimum slopes of 5-6%
• Turning radii that dictate column spacing and floor plate efficiency
• Ceiling heights of 8-9 feet minimum to allow vehicle clearance and mechanical systems
• Parking stall dimensions of approximately 9′ x 18′ plus maneuvering space

These requirements add up quickly. In a typical 100-unit multifamily building requiring 150 parking spaces, you’re looking at 45,000-55,000 square feet of parking area across multiple levels, space that generates zero rental income.

AGV-Based Robotic Parking Valet Garages: Maximum Density Through Intelligence

AGV-based robotic garages represent the cutting edge of automated parking technology. Autonomous Guided Vehicles (AGVs) utilize AI-powered systems to monitor traffic patterns and optimize vehicle placement, achieving parking densities impossible with human drivers.

The space efficiency stems from several key advantages:

Single-point access design: Unlike conventional garages requiring multiple entry points and circulation routes, robotic garages operate with a single drop-off kiosk. Projects like the 38-space PARKPLUS system in New York’s Jardim development demonstrate how this streamlined approach eliminates entire levels of ramps and drive aisles.

Turn Any Garage Into An Autonomous Robotic Parking Valet Parking System That Provides Efficient Parking & Retrieving of Vehicles With The Touch Of A Button

Adaptive floor plan configuration: AGV systems offer complete flexibility in layout design. Vehicles can be parked inches apart without concern for door clearance or pedestrian access. The system adapts to irregular site geometries that would be impossible for traditional parking, allowing developers to maximize every corner of subterranean or podium-level spaces.

Vertical and horizontal stacking: Modern AGV systems can stack vehicles both vertically and horizontally using movable platforms, essentially creating a three-dimensional parking matrix. This approach can increase parking capacity by 100-200% within the same footprint compared to conventional layouts.

Turn Any Garage Into An Autonomous Robotic Parking Valet Parking System That Provides Efficient Parking & Retrieving of Vehicles With The Touch Of A Button

For developers, the ROI calculation is straightforward: every 10,000 square feet of parking space you eliminate represents 10-12 additional residential units in most markets. At average multifamily construction costs of $300-400 per square foot, you’re looking at $3-4 million in additional buildable value from space reclamation alone.

Learn more about our fully automated robotic parking solutions and how they integrate into multifamily projects.

Robotic Parking AGV Robots Park & Retrieve Vehicles in Less Than 70 Seconds and Park Cars Efficiently Saving Spacce

Car Stacker Valet Parking Systems: Doubling Capacity Without Expanding Footprint

Car stackers provide a more accessible entry point into automated parking while still delivering substantial space savings. These semi-automated systems use hydraulic or mechanical lifts to stack vehicles vertically, typically in two or three-level configurations.

The space reclamation math is compelling: A traditional parking layout might accommodate 50 vehicles per 10,000 square feet. A double-stacker configuration in the same footprint handles 100 vehicles. You’ve just eliminated an entire parking level from your building program.

For multifamily developers, car stackers excel in several scenarios:

Below-grade optimization: Excavation costs run $150-300 per cubic yard in urban markets. By doubling parking capacity within a single subterranean level using car stackers, you avoid digging an additional basement level: potentially saving $2-3 million on a mid-sized project.

Podium efficiency: In mixed-use or mid-rise developments with podium parking, car stackers allow you to reduce the podium height by one or two levels. This means residential units start closer to grade, creating more desirable units and reducing overall building height in markets with strict zoning limits.

Adaptive reuse potential: Car stackers require minimal structural modifications compared to other automated systems, making them ideal for renovating existing parking structures or converting ground-floor retail spaces into more efficient parking.

The operational simplicity of car stacker systems also appeals to property management teams. With fewer moving components than AGV-based systems, maintenance requirements remain manageable while still delivering the core benefit: dramatically increased parking density without expanding your building footprint.

Explore our range of car stacker solutions designed for multifamily applications.

Vertical Lift Puzzle Parking Systems: Flexible Configuration for Constrained Sites

Puzzle parking systems utilize a grid-based approach where vehicles are moved both horizontally and vertically within a framework of platforms. Think of it as a sliding puzzle game, but for cars. These systems excel in irregular or constrained sites where traditional parking simply won’t fit.

The “puzzle” designation refers to how the system shuffles empty spaces to retrieve requested vehicles. When a driver requests their car, the system calculates the optimal sequence of platform movements to bring that specific vehicle to the ground-level retrieval point: typically in 45-90 seconds.

For multifamily developers, puzzle parking systems offer distinct advantages:

Site adaptation: Puzzle systems can be configured to fit L-shaped lots, narrow parcels, or spaces with existing structural columns that would complicate traditional parking. This flexibility means you can maximize parking capacity even on challenging urban infill sites.

Modular scalability: Unlike conventional garages that require building entire additional levels to expand capacity, puzzle parking can be expanded incrementally. Start with 50 spaces and add another module of 25 spaces later as the development phases complete.

Lower ceiling height requirements: Puzzle parking systems typically require only 5.5-6.5 feet of clearance per vehicle level compared to 8-9 feet for traditional parking. Across four parking levels, this represents 10-14 feet of reduced building height: potentially the difference between requiring a variance or building by-right.

Converting Reclaimed Space Into Revenue: The ROI Perspective

The true value proposition extends beyond construction cost savings. Every square foot you reclaim from parking becomes an opportunity for revenue generation:

Additional residential units: Converting 15,000 square feet of parking into 15 studio or one-bedroom units generates $300,000-450,000 in annual rental income in most major markets: a significant boost to your property’s NOI and valuation.

Premium amenity space: Developers are increasingly converting reclaimed parking area into co-working lounges, fitness centers, or rooftop decks. These amenities command rent premiums of $50-150 per unit monthly while improving resident satisfaction and retention.

Retail or commercial integration: Ground-floor parking represents the lowest and best use of street-level space. By moving parking underground or into compact automated systems, you free up street frontage for retail tenants paying $40-80 per square foot versus $0 for parking.

EV charging integration: Modern automated parking systems can incorporate EV charging infrastructure more efficiently than traditional garages, future-proofing your property while meeting growing demand for electric vehicle support.

Navigating Implementation: What Developers Need to Know

Successful implementation requires early integration into the design process. Automated parking systems impact structural loads, electrical requirements, and building circulation in ways that are difficult to retrofit later. Engage with automated parking specialists during schematic design, not at the construction document phase.

Permitting timelines vary by jurisdiction. Markets like Los Angeles, Seattle, and Florida have growing familiarity with automated parking systems, but expect AHJ approval to add 4-8 weeks to your permitting schedule for the initial project in a new jurisdiction.

Insurance and operational costs merit consideration. While automated systems eliminate parking attendant labor, they require service contracts typically running $30,000-60,000 annually depending on system size and complexity. However, this cost is offset by reduced insurance premiums: automated garages eliminate vehicle theft, break-ins, and pedestrian incidents common in conventional facilities.

The Future Is Built on Reclaimed Space

As urban land costs continue climbing and multifamily developers face increasing pressure to maximize returns, automated parking systems have evolved from novelty to necessity. Whether you choose AGV-based robotic garages for maximum density, car stackers for accessible efficiency, or puzzle parking systems for site flexibility, the fundamental value proposition remains consistent: reclaim 60% more buildable space and convert dead parking area into revenue-generating assets.

The developers who will thrive in 2026 and beyond are those who recognize that parking doesn’t have to consume 30-40% of their building program. With strategic implementation of automated parking technology, that percentage drops to 15-20%: and the difference becomes additional units, better amenities, and stronger property performance.

Ready to explore how automated parking can transform your next multifamily project? Contact our team to discuss site-specific solutions and space reclamation potential.
